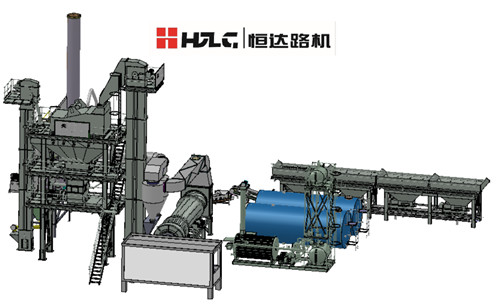

Adopts world class advanced technology and optimized through each generation, with compact structure, performance is steady and reliable, , the model is common used for the maintenance projects of all grade roads, and it can be packed into container fulfill of sea shipment.



Asphalt plant three major parts(vibrating screen, mix bin, dry drum) are patent products。 Productivity of the whole machine is improved, quality be strengthened and be more safety and convenience.



The overall layout is compact with novelty structure, less ground occupying, easy for erection and site shifting.



Whole equipment adopts modular design, convenient for shipping and installation for all composed parts.



Equipment adopt electro precision measuring(bitumen tracking measuring, aggregates secondary measuring), assure the accuracy of measuring.



Electronic elements adopt imported German brand, control system is Manual/Auto microcomputer control.



The gearbox, bearing, burner, pneumatic elements, dedust bag adopt imported brand, to assure the stability of equipment running.



Model & Spec	LB-1000
Capacity	60-80t/h
Intermittent mix	1000kg/lot
Measuring mode	Bitumen tracking measuring, aggregates secondary measuring
Cold system	Frequency control
Measuring precsion	Aggre.≦0.5%、bitumen/powder≦0.25%
Mix bin	Forced type, dragon spiral type blade arm arrangement
Drying drum	φ1500×6750
Vibrating screen	Maintenance free, exciting motor vibrating
Burning device	Low pressure atomizing type
Burning type	Coal, diesel, heavy oil, gas
Hot material lifter	Plate link chain gravity drops(compact hoppers)
Dedust mode	First volute, secondary bag(Air anti blow/impulse)
